Mixers EXPert

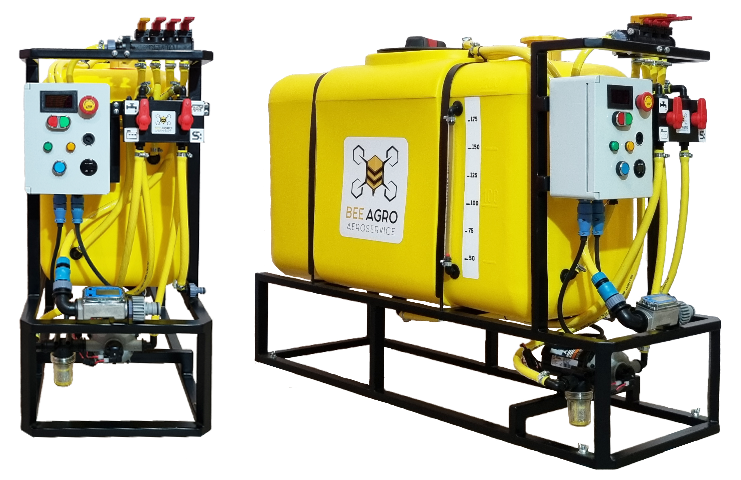

The EXP series is a basic mixing station for high-quality production of working solvent in the field. A number of design features will allow you to expertly work with preparations prone to sediment, as well as to clean containers of plant protection products for disposal. Farmers and service teams of Ukraine and Europe have verified the effectiveness of this solution.
The EXP series is a basic mixing station for high-quality production of working solvent in the field. A number of design features will allow you to expertly work with preparations prone to sediment, as well as to clean containers of plant protection products for disposal. Farmers and service teams of Ukraine and Europe have verified the effectiveness of this solution.
- Water meter
- Mixing system
- Remote control, 2 pcs
- Pump line filter
- Bucket filter
- Float level
- Power cable from the battery
- Rubber support, 4 pcs
- Tank washing system
- Pump 26.5 l/min
- Tank washing system
- Power supply unit from 220 V
- Water clean filter
- Hose with the couplings and filter, 20 m
- Refueling gun
- Nozzle adapter
- Transport wheel, 4 pcs
- Canister washing system
- Adulteration system of solvent
- Lighting
Design features
The pump, pipes, tank, collector, faucet, etc parts which are used in the design are produced by the world’s best manufacturers and are resistant to aggressive environments and chemicals.
The 12-volt power supply system is equipped with a charge control indicator, allowing you to work in the field from batteries. It is optionally equipped with a power converter unit 220 to 12 volts for operation from a generator.

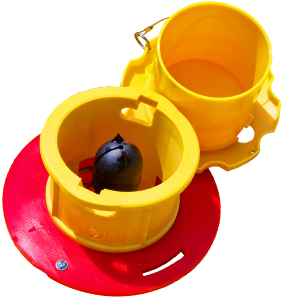

The canister washing system allows you to clean the remains of the agents, which facilitates the future process of container disposal, and also minimizes the operator's contact with harmful substances.

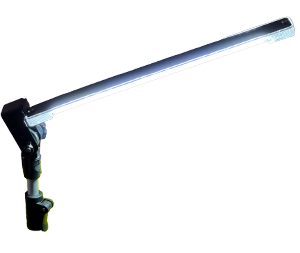

Autonomous LED lighting for working at night - a folding telescopic rod with a lamp is installed on the mixer frame.
Precise control of water pumping from the external tank for preparing the solvent. EXP mixers have an electronic meter.
Refueling gun - safety and comfort of the operator during the "pit stop" of the drone. The high-pressure spray adapter acts as a sink for the mixer, drone and other equipment after field work.
The mesh basket-shaped filter is a protection against the entry of garbage and small particles from the outside into the middle of the tank. Minimizing the risks of clogging the injectors or atomizers of the drone.
Line filters of the pump and "input" hose protect the units from abrasive materials, impurities such as clay, sand, dirt, etc. This significantly increases the service life of the mixer, and also minimizes downtime.

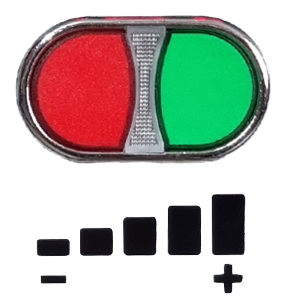

The pump speed regulator makes it possible to influence the productivity and quality of mixing, as well as to control the foaming of agents that have a tendency to this.
The tank washing system cleans the inside of its walls from the remains of the solvent, thereby facilitating the removal of the consequences of the activity after the end of the work. Optional for ECO.
Remote controls allow a single operator or pilot to refuel the drone right next to the UAV. Standard for all types of mixing stations.

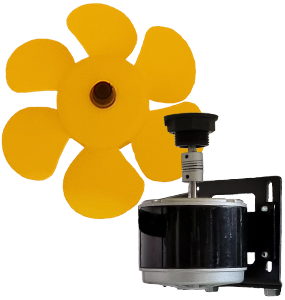

Fun with an engine speed regulator during operation ensures constant mixing of the solvent and reduces the risk of sedimentation of agents that have a tendency to this.
Use Advantages
A auality and accuracy of mixing of solvent’s components
A minimization of human contact with toxic substances
An optimization of drone refueling time
An improvement of the level of professionalism
